DT Wiring Loom H3/H4 adapters

DT Wiring Loom H3/H4 adapters to bring your Driving lights to life! These wiring looms are for your forward facing Light Bars, Ideal for a 43″ Light bars that go…

$55.00 *Inc GST

In stock (can be backordered)

DT Wiring Loom H3/H4 adapters to bring your Driving lights to life!

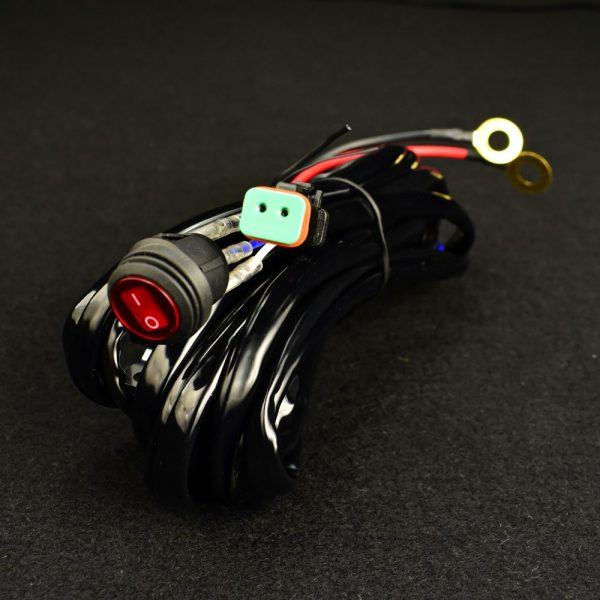

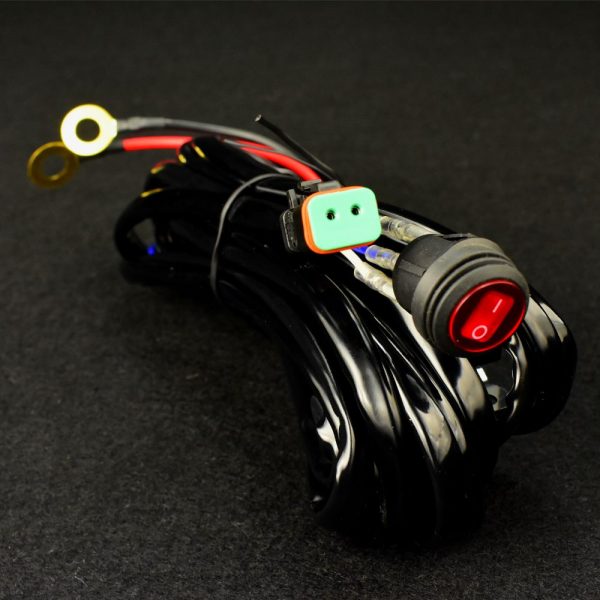

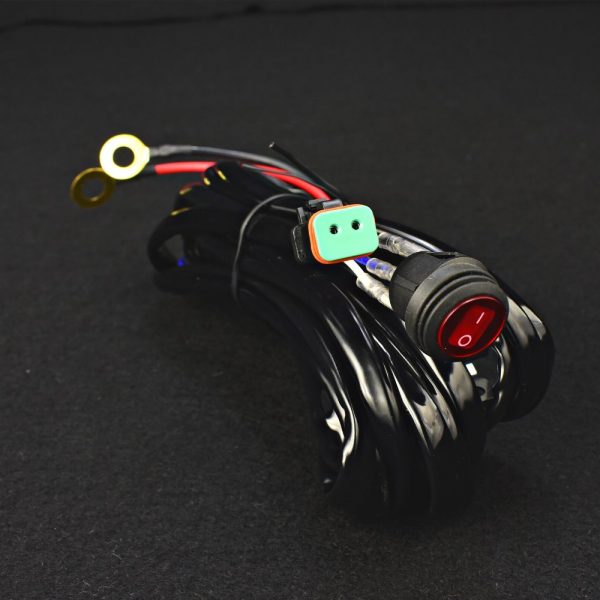

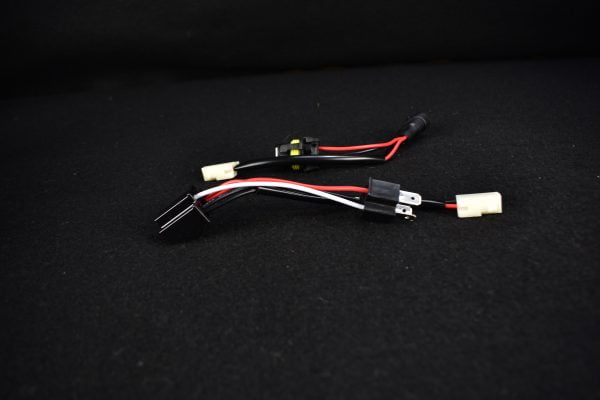

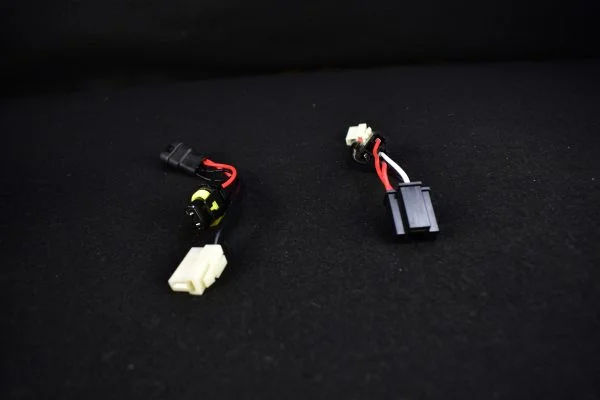

These wiring looms are for your forward facing Light Bars, Ideal for a 43″ Light bars that go with the Chevy Silverado Grill Mounts. H3/H4 adapter included which will suit most high beam connections on vehicles pre 2000.

The wiring loom is 6.5 meters in length from Battery Terminal to switch. You have 2.95 meters in length from switch to relay and 2.95meters from relay to battery terminals. Sheath cabling around 12AWG that can handle up to 20amp draw, 12-gauge also allows long runs of wire to deliver power with less risk of a voltage drop.

3 pin Toggle switch that has an internal red light when turned on.

Battery terminals are 10mm internal diameter and will suit all battery connections.

1 x Male DT connector to connect 1 Light Bar

40AMP / 12V Relay
